AI Dashboards

AI Dashboards let you build your own persistent dashboards out of widgets (charts, tables, counters, flow diagrams) whose data comes from ClickHouse queries. Widgets can be generated by nAnalyst from a plain language description, or assembled manually with a step by step wizard. Once saved, a dashboard can be reopened at any time, evaluated again over any time range, and rearranged by drag and drop.

Note

AI Dashboards require ntopng Enterprise XL and a ClickHouse enabled ntopng instance (historical flows must be stored in ClickHouse). When these requirements are not met, the AI Dashboard menu entry is hidden. Generating widgets with nAnalyst also requires a configured LLM provider (see LLM Setup). Creating, editing and deleting dashboards is restricted to administrators.

Opening the page

The page is available from the ntopng menu under AI Dashboard. It is organized in two tabs:

• My Dashboards: view, rearrange and delete the saved dashboards.

• Create Dashboard: create dashboards and add or edit their widgets.

The active tab and the selected dashboard are stored in the page URL, so a dashboard can be bookmarked or shared with another user of the same ntopng instance.

My Dashboards

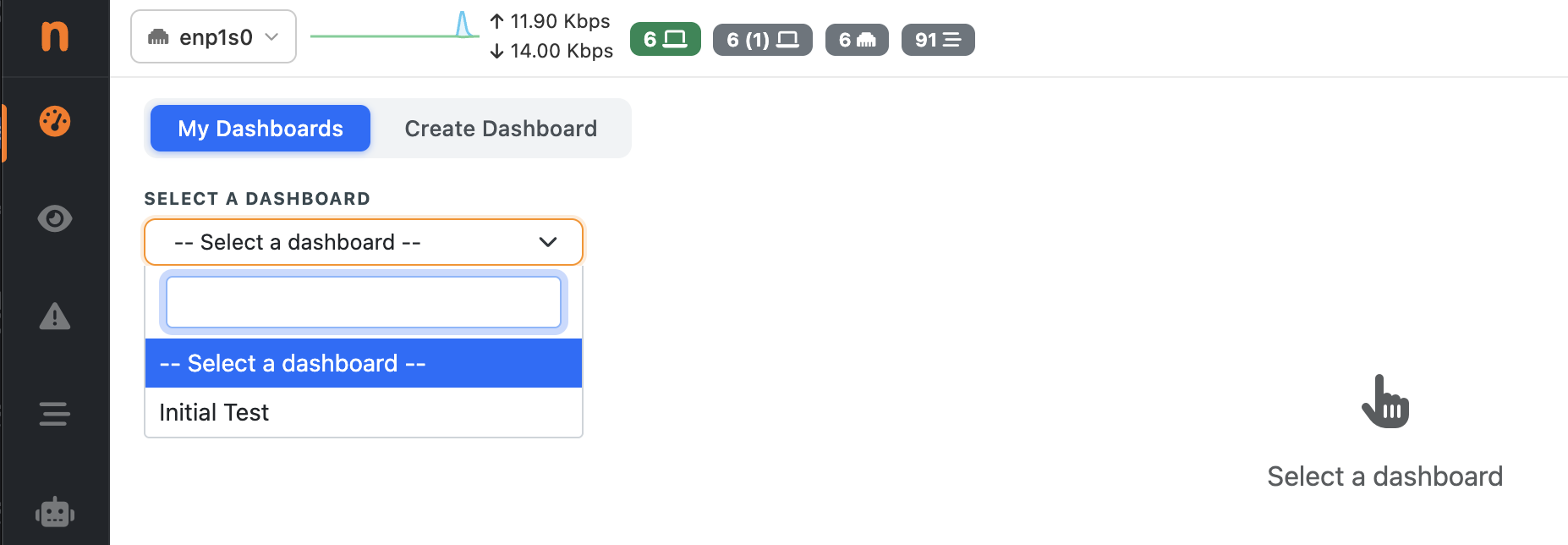

A saved dashboard in the My Dashboards tab

Pick a dashboard from the Select a dashboard dropdown to display it. The toolbar contains:

• Edit / Done editing (pencil button): switches the layout edit mode on and off (see Moving and resizing widgets).

• Delete (trash button): permanently deletes the selected dashboard after a confirmation. This cannot be undone.

• Time Range: date/time picker, with refresh, that applies to every widget of the dashboard at once. Widget queries are run again every time the range changes.

• Filters: a filter bar (same syntax as the historical flows page) applied to all the widgets. Use it, for example, to restrict the whole dashboard to a single host, port or protocol.

If a widget shows “No data in the selected time range and filters” the query ran successfully but returned no rows: widen the time range or remove some filters.

Seeing how the data is extracted

Every widget header has an info button (the circle i icon) at the top right. Hover over it to see the ClickHouse query that feeds the widget, and click it to copy the query to the clipboard (the icon briefly turns into a check mark). The query uses the dashboard time range and filters, so you can paste it in a ClickHouse client to inspect the raw rows behind a chart, verify a number, or use it as the starting point for a new widget. Nothing is hidden: you can always see exactly where the data of a widget comes from.

Moving and resizing widgets

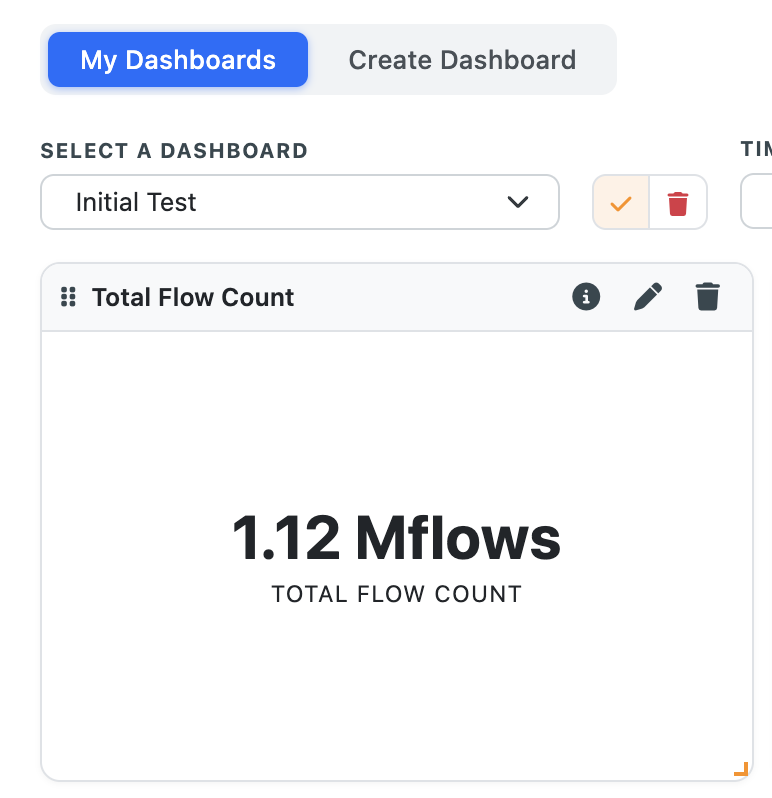

Layout edit mode: drag handle, resize handle, edit and remove buttons

Dashboards use a 12 column grid. Click the pencil button to enter edit mode, then:

• Move: drag a widget by the grip handle in its header and drop it in the new position. Other widgets are compacted automatically.

• Resize: drag the resize handle in the bottom right corner of the widget. The minimum size is 2 columns by 2 rows, and a widget cannot be dragged outside the grid.

• Edit: the pencil in the widget header opens the widget in the Create Dashboard tab (see below).

• Remove: the trash icon in the widget header removes the widget from the dashboard.

Every move or resize is saved automatically a moment after it happens, so nothing is lost if you switch tab. Click the pencil button again (Done editing) to leave edit mode; a confirmation toast is shown when the layout has been saved.

Creating a dashboard

Widgets can be created in two ways: with the AI assistant, describing what you want in plain language, or manually, choosing the chart type, unit and query yourself. AI generated widgets must be reviewed before saving; manually created widgets are considered reviewed, since you configure each step yourself.

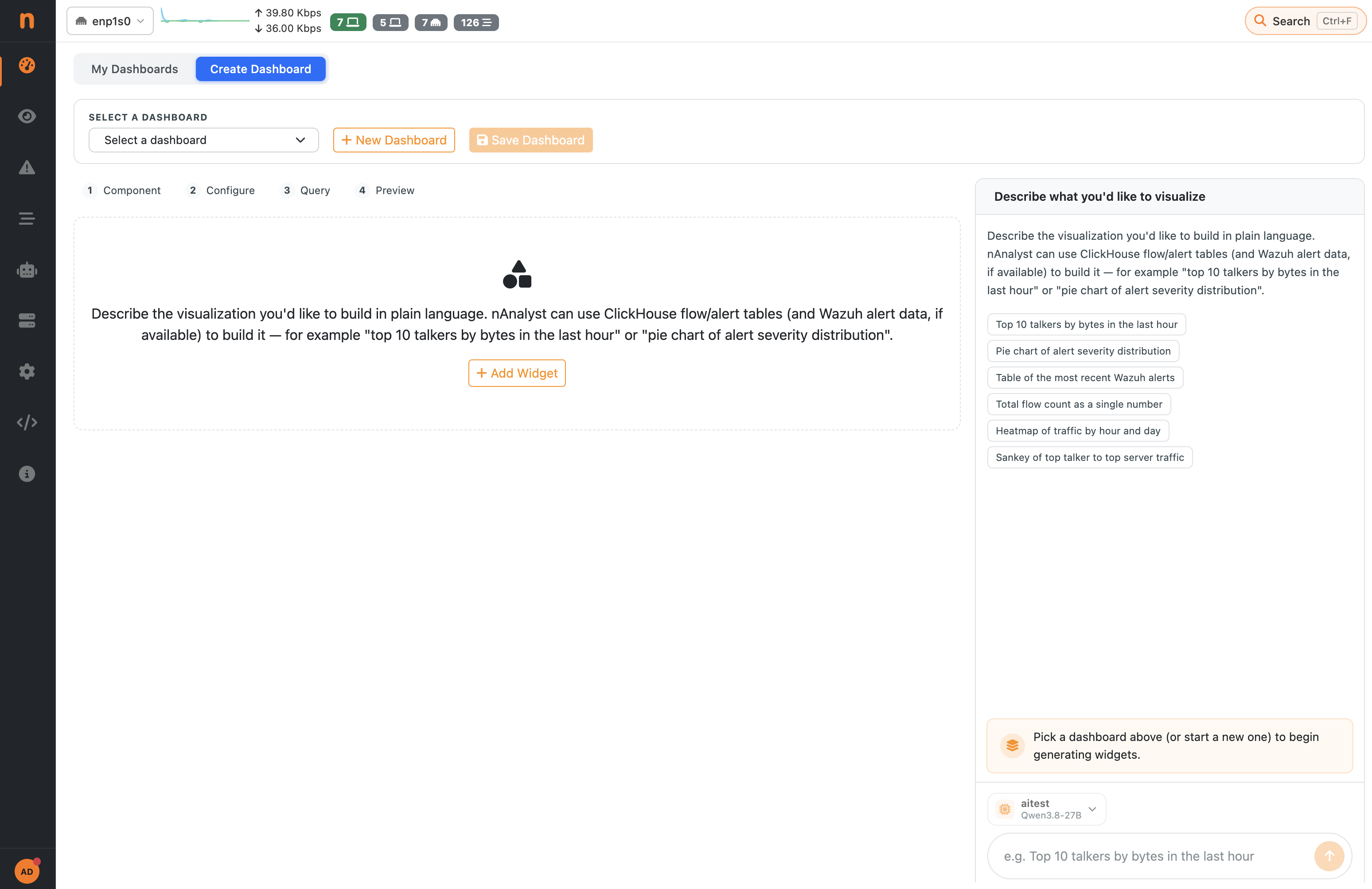

The Create Dashboard tab

Open the Create Dashboard tab. At the top of the page:

1. Select an existing dashboard to add widgets to it, or click New Dashboard to start a new one. For a new dashboard enter a Dashboard name (any text except the single quote character).

2. Add one or more widgets, using nAnalyst or the manual wizard described below.

3. Click Save Dashboard. You are taken back to My Dashboards with the dashboard selected.

Widgets that have not been saved yet are listed under New widgets (not yet saved), and a counter reports how many are pending. If you leave the page with unsaved widgets, ntopng asks for confirmation; unsaved widgets are also kept as a draft, and when you come back you are offered to Restore or Discard them.

Generating widgets with nAnalyst

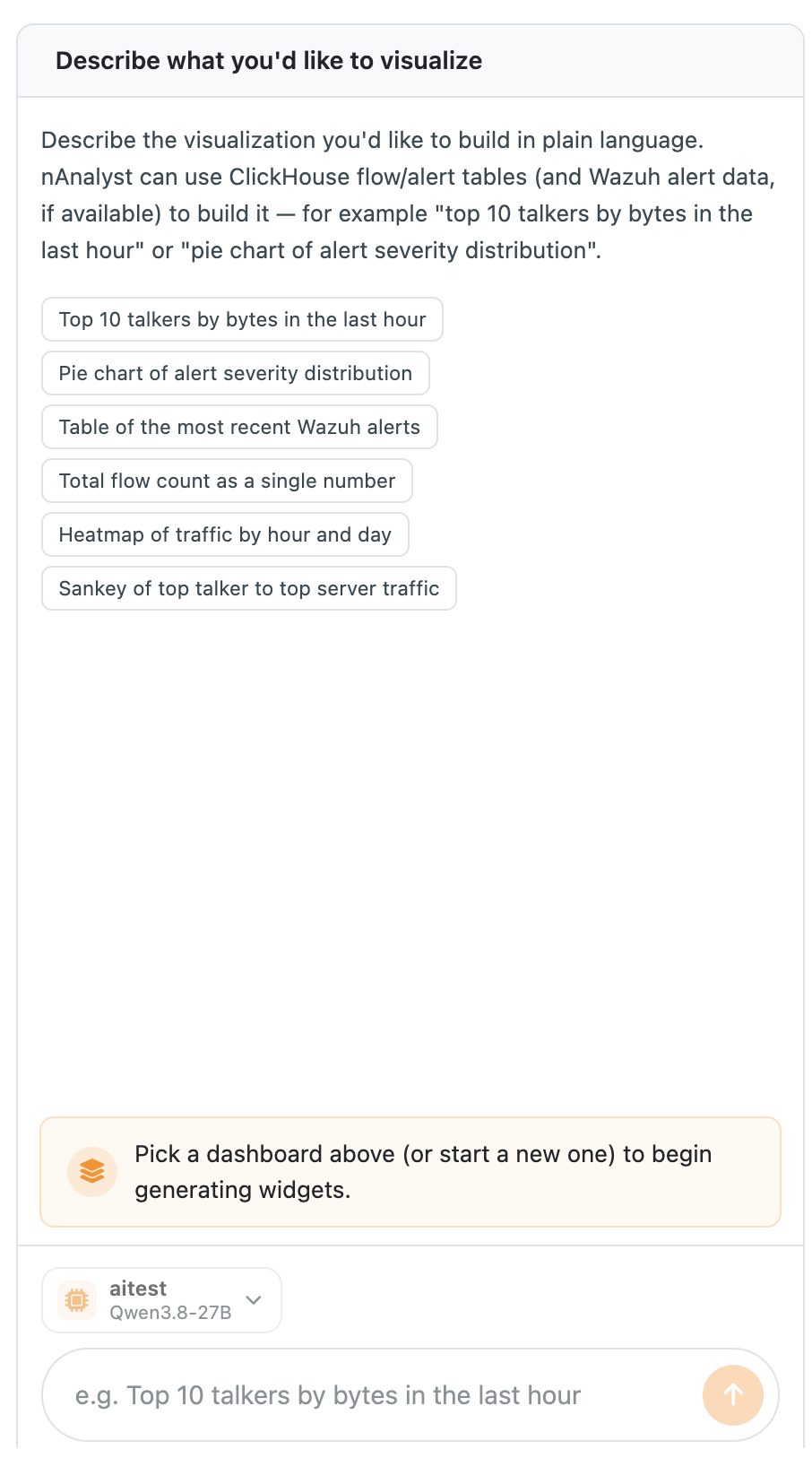

Generating widgets from a natural language description

The panel on the right works like a small chat. Select the LLM provider, describe what you want to see and press Enter, for example:

• Top 10 talkers by bytes in the last hour

• Pie chart of alert severity distribution

nAnalyst explores the available ClickHouse tables, writes the SQL query, validates it against the database (retrying and fixing it automatically if it fails) and returns the finished widgets. Progress is displayed live in the panel, and you can stop the generation at any time. If the request is ambiguous, nAnalyst asks a clarifying question instead of guessing.

Reviewing the generated widgets

nAnalyst decides, for every widget it builds, the chart type that best fits the data, the title, the unit of measure (bytes, bps, packets, flows, percentage, …) and the SQL query. Since these choices are made by an AI, each new widget is marked Needs review and must be reviewed before the dashboard can be saved. For each widget check that:

• the title describes what the widget shows;

• the unit of measure is the right one for the values (for example bytes versus bits per second);

• the chart type suits the data (a ranking is better as a bar chart, a share of the total as a pie chart, a trend over time as a time series, and so on);

• the query returns what you expect: use the info button (see Seeing how the data is extracted) to read it, or Test Query in the editor to run it and preview the result.

To change any of these, click the pencil on the widget. This opens the same wizard used for manual creation, prefilled with the nAnalyst choices, where every step (Component, Configure, Query, Preview) can be reviewed and modified. Once you are satisfied, either confirm the changes or click the Looks good, mark as reviewed button on the widget. A reviewed widget changes its badge from Needs review to Reviewed, and a counter (for example 2/3 reviewed) shows the progress. The Save Dashboard button is enabled only when all the new widgets have been reviewed.

To change the query of an existing widget, edit it and use Revise with nAnalyst: describe the change (for example only count TCP flows) and nAnalyst modifies only the SQL, leaving title, chart type and layout untouched.

Adding a widget manually

If you prefer not to use an LLM, or you already know the query you want, widgets can be created entirely by hand, without nAnalyst. Both ways can be freely mixed in the same dashboard.

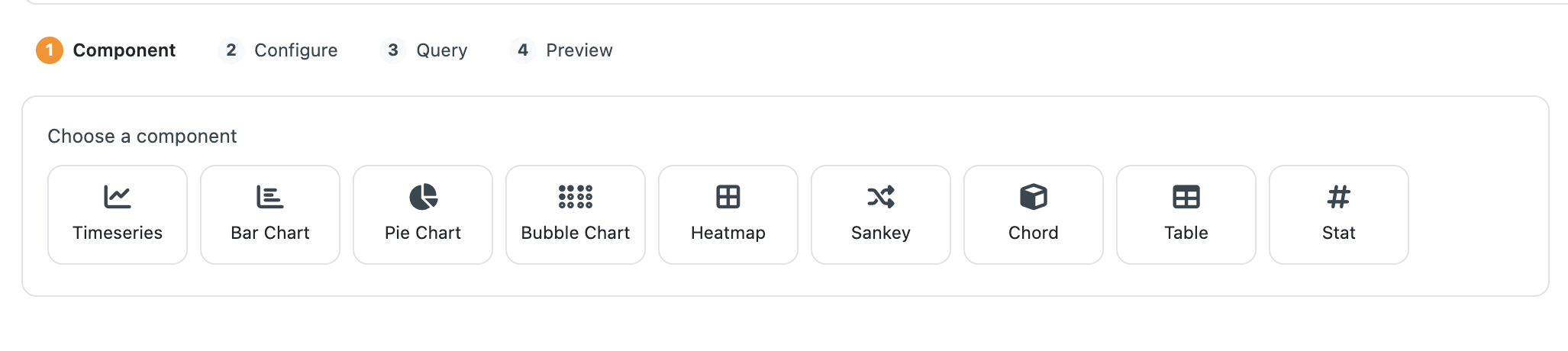

Widget wizard: choosing the component

Click Add Widget to start the four step wizard:

1. Component: choose the widget type (see the list below).

2. Configure: set the title, the unit used to format the values, and, for charts, the axis titles.

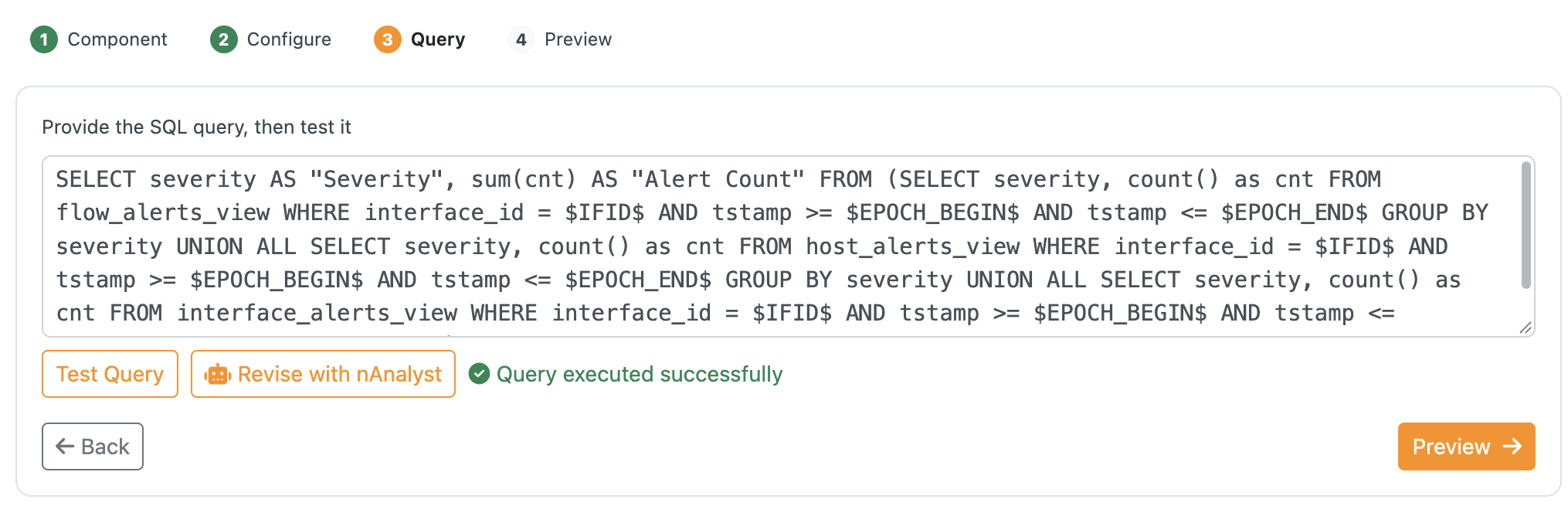

3. Query: write the ClickHouse SQL query and press Test Query. The Preview step is available only once the query executes successfully. You can also ask nAnalyst to revise the query.

4. Preview: the widget is rendered with live data. Choose its Width (columns) and Height (rows), from 2 to 12, then click Add to Dashboard.

Widget preview with width and height

Queries must use the following placeholders, which ntopng replaces at run time with the dashboard time range and the selected interface:

SELECT ... FROM flows
WHERE FIRST_SEEN >= $EPOCH_BEGIN$ AND FIRST_SEEN <= $EPOCH_END$ AND IFID = $IFID$

Widget types

Type	Description
Time series	Line chart of one or more values over time.
Bar chart	Ranked values, vertical or horizontal, optionally stacked.
Pie chart	Share of each item over the total.
Bubble chart	Three dimensional comparison (X, Y and bubble size).
Heatmap	Intensity of a value across two dimensions.
Sankey	Traffic flowing from a source to a target.
Chord	Relationships and volumes between a set of entities.
Table	Raw rows returned by the query.
Stat	A single highlighted number (for example the total number of flows).

Values can be formatted with the following units: number, full number, bytes, bps, flows, packets, pps, ms, percentage, or no formatting.

Related pages

• Tools and Licensing: editions required by nAnalyst features.

• LLM Setup: configuring the LLM provider used to generate widgets.
