Developer

Into the Developer menu, it’s possible to find things related to developers, like PCAP captures, Checks definitions ecc.

Analyze PCAP File

Under the Developer menu there is a menu entry that allows pcaps to be analysed. This feature is useful when using ntopng remotely for analysing pcap files without the need to copy the file on the remote host where ntopng is running.

Pcap Analysis

This form allows you to upload a pcap to ntopng using the web form and let ntopng analyse it.

Upon pcap upload, ntopng will create a new network interface whose name is the pcap file name, and start analyse it. The uploaded pcap will be saved under /var/lib/ntopng/tmp/upload and deleted as soon as ntopng has read it all. If you current selected interface is a pcap interface (i.e. it is an interface that has analysed a pcap file), you can use the toggle to instruct ntopng not to create yet another network interface but to replace the current interface with the uploaded pcap.

Note

  • In order to avoid uploading huge pcaps, ntopng has a limit (currently set to 10 MB) for pcap file upload size.
  • This feature is available in all ntopng editions.

Behavioural Checks

Here the list of all scripts and checks can found, with the License availability, the frequency (Hooks), filters and Execution time (in case of performances issues).

Pcap Analysis

Behavioural Checks page

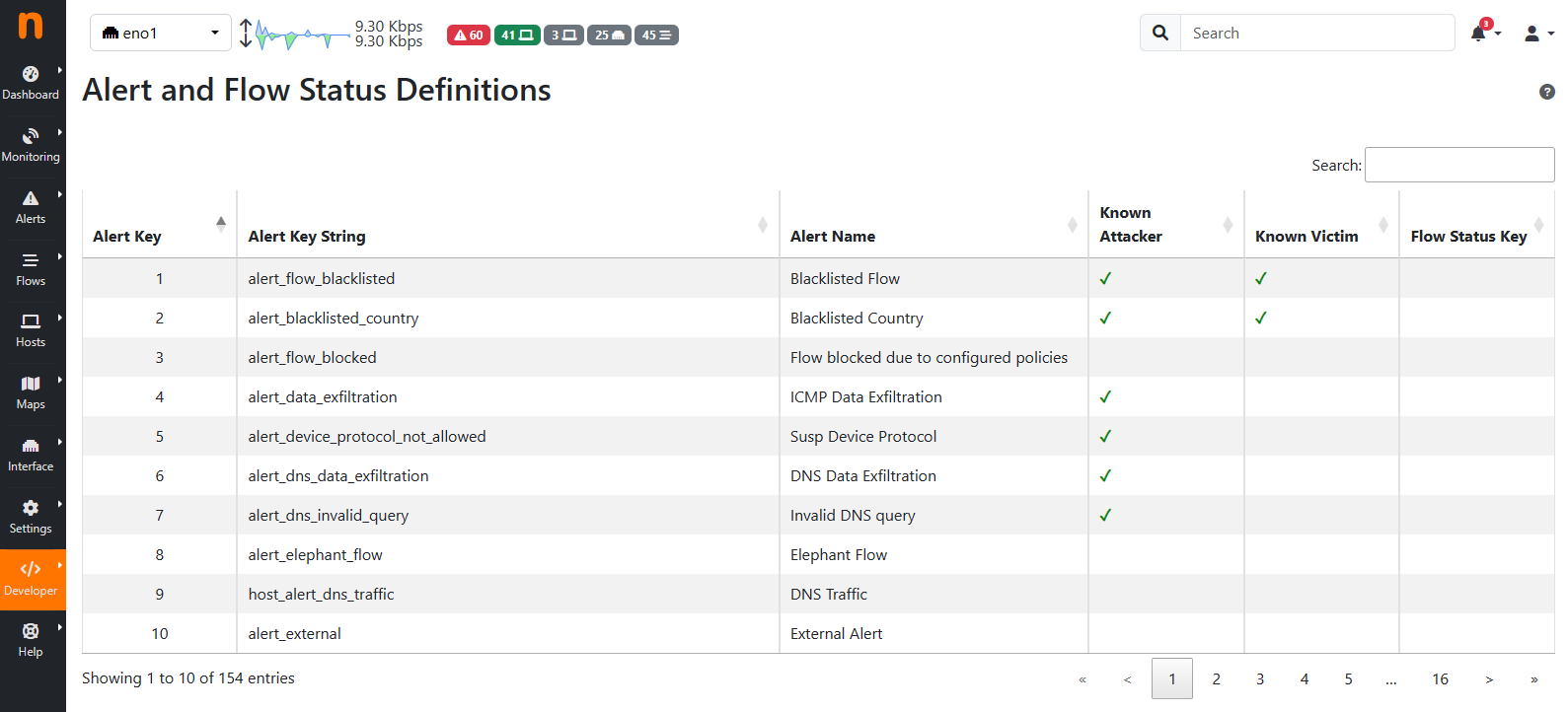

Alert and Flow Status Definitions

Here instead the list of the checks and related Alert Name can be found.

Pcap Analysis

Alert and Flow Status Definitions page

Directiories

The list of directories used by ntopng.

Pcap Analysis

Directories page
