“Classic” ntop

Traffic analysis with NetFlow™ and sFlow™ support.


ntop is a network traffic probe that shows the network usage, similar to what the popular top Unix command does. ntop is based on libpcap and it has been written in a portable way in order to virtually run on every Unix platform and on Win32 as well.

ntop users can use a a web browser (e.g. netscape) to navigate through ntop (that acts as a web server) traffic information and get a dump of the network status. In the latter case, ntop can be seen as a simple RMON-like agent with an embedded web interface. The use of:

  • a web interface
  • limited configuration and administration via the web interface
  • reduced CPU and memory usage (they vary according to network size and traffic)

make ntop easy to use and suitable for monitoring various kind of networks.

What ntop can do for me?


  • Sort network traffic according to many protocols
  • Show network traffic sorted according to various criteria

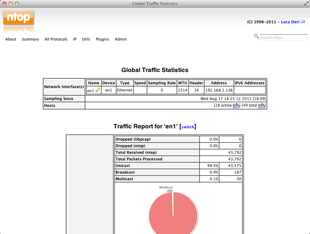

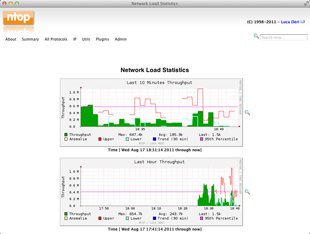

  • Display traffic statistics
  • Store on disk persistent traffic statistics in RRD format
  • Identify the indentity (e.g. email address) of computer users
  • Passively (i.e. without sending probe packets) identify the host OS
  • Show IP traffic distribution among the various protocols
  • Analyse IP traffic and sort it according to the source/destination
  • Display IP Traffic Subnet matrix (who’s talking to who?)
  • Report IP protocol usage sorted by protocol type
  • Act as a NetFlow/sFlowcollector for flows generated by routers (e.g. Cisco and Juniper) or switches (e.g. Foundry Networks)
  • Produce RMON-like network traffic statistics
Platforms
  • Unix (including Linux, *BSD, Solaris, and MacOSX)

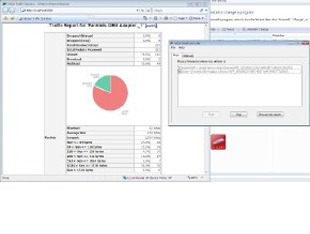

  • Win32 (Win95 and above including Vista)
Media
  • Loopback
  • Ethernet (including 802.11Q)
  • Token Ring
  • PPP/PPPoE
  • Raw IP
  • FDDI
  • FibreChannel
  • …and many more
Requirements
  • Memory Usage
    It depends on the ntop configuration, number of hosts, and number of active TCP sessions. In general it ranges from a few MB (little LAN) to 100 MB for a WAN.
  • CPU Usage
    It depends on the ntop configuration, and traffic conditions. On a modern PC and large LAN, it is less than 10% of overall CPU load.
Protocols
  • IPv4/IPv6
  • IPX
  • DecNet
  • AppleTalk
  • Netbios
  • OSI
  • DLC
  • …and many more
IP Protocols Fully User Configurable
Additional
Features
  • VoIP support (SIP, Cisco SCCP and Asterisk IAX)
  • NetFlow (including v5 and v9) and IPFIX support
  • Network Flows
  • Local Traffic Analysis
  • Multithread and MP (MultiProcessor) support on both Unix and Win32
  • Python lightweight API for extending ntop via scripts
  • Support of both NetFlow andsFlowas flow collector. ntop can collect simultaneously from multiple probes.
  • Traffic statistics are saved into RRDdatabases for long-run traffic analysis.
  • Internet Domain, AS (Autonomous Systems), VLAN (Virtual LAN) Statistics
  • Network assets discovery and categorization according to their OS and users
  • Protocol decoders for many internet protocols
  • Advanced ‘per user’ HTTP password protection with encrypted passwords
  • RRDsupport for persistently storing per-host traffic information
  • Passive remote host fingerprint (Courtesy of ettercap)
  • HTTPS (Secure HTTP via OpenSSL)
  • Virtual/multiple network interfaces support
  • Graphical ntop launcher (Win32 only)

Get It


Have a look at the download page.
